up to 250 °C
Heated Hoses for Loading and Unloading
DN25-DN100 - Maintain temperatures and enable loading/unloading of oil, fat, resins, paint, bitumen, adhesives, compounds and foods without temperature loss. Our speciality: flexible and yet robust design for pressures up to 50 bar and temperatures to 250 °C. eltherm loading/unloading systems are available with approval for hazardous areas.
Applications
Chemical and Petrochemical Industries, Food Industry, Pharmaceutical Industry, Extrusion Lines
Adhesives, PU foaming, dispensing systems, potting systems
Surface Treatment, Coating, and Paint Spraying Systems
Technical Benefits
- High performance through close, tight coiling of heating cable with spacer
- Homogenous heat transfer
- Longer lifespan and reliable operation
- High quality standard
- Safety against hot spots

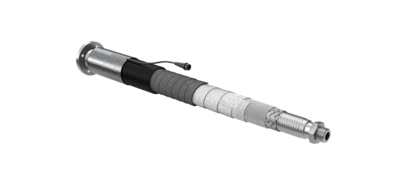

Product highlights
Connection fitting
all common fittings
End caps
- Shrinkd end caps
- Metall end caps (aluminium / stainless steel)
- Silicone end caps
Outer jacket
- PU corrugated hose
- TPE corrugated hose
- Industrial fabric hose
- Stainless steel braid
- Galvanized steel braid
- Nylon braid
- Vulcanized EPDM outer sheath
Connection cable
Standard: 1,5 m in silicone protective tube with multiplw polw plug (4 pole + PE / 6 Pole + PE) suitable for eltherm controller
Insulation
- Multi-layer thermofleece
- Thermofleece with foam tube
Insulation
- Multi-layer thermofleece
- Thermofleece with foam tube
Trace heater with Spacer
Sensor
- PT-100 / 2 wire
- PT-100 / 3 wire
- PT-100 / 4 wire
- PT-1000
- Thermo couples Type Fe Cu-Ni (Type J) and Ni Cr-Ni (Type K)
Inner tube
- Corrugated stainless steel tube
- PTFE corrugated tube
- Universal FEP tube for chemicals
- Provided by customer
End fitting
Technical Data
| Operating pressure | up to 50 bar |
| Diameter | DN25 up to DN100 mm |
| Operating temperature range | -20 °C up to +250 °C |
| Nominal temperature | up to +250 °C |
| Voltage | 24 V up to 500 V |
