Versions
Protective braid with fluoropolymer outer jacket (Teflon). Trace heaters with fluoropolymer outer jacket for use in aggressive chemical, oil and fuel environments. A detailed list of chemical resistances is available online.
up to 250 °C / 482 °F

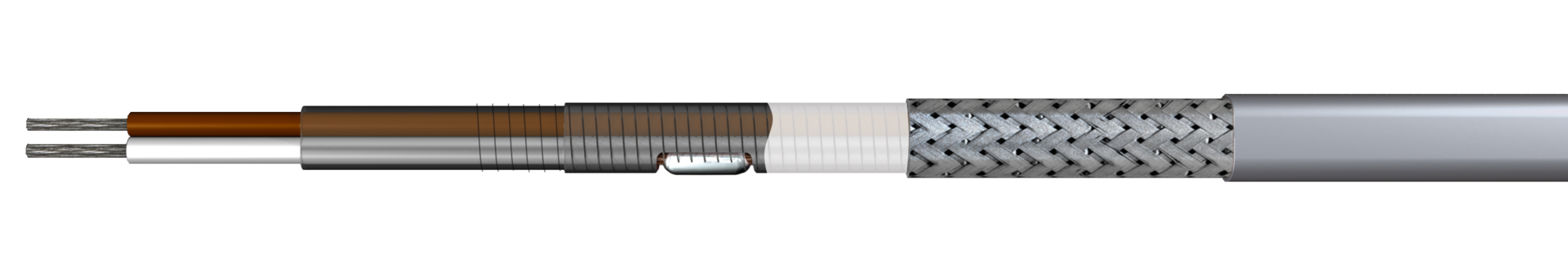

ELP-PFA NA
Constant wattage resistance wire trace heaters
eltherm’s parallel constant wattage trace heaters offer superior flexibility and provide consistent power output for freeze protection and temperature maintenance of piping, vessel and equipment heating.
ELP trace heaters provide constant heating output independent from the chosen maintain temperature with virtually no in-rush current, reducing the requirement for oversized power distribution circuitry.
No separate connection (cold lead) is required and the input can be single sided. It is quick and easy to install, saving time and reducing overall assembly costs. The ELP-PFA series trace heaters are available in a wide variety of outputs and various voltages for high power requirements in industrial process environments or low power applications requiring longer circuit lengths.
High-grade fluoropolymer insulation and outer jacket materials offer highest chemical resistance and high temperature operation.
Applications
Chemical and Petrochemical Industries, Food Industry, Paper Industry
Water transport systems, industrial process piping
Technical Benefits
- single end power input
- can be cut to length
- constant power output per meter
- high chemical resistance
- UV resistance
- flexible
Technical Data
| Bending radius, min. | 25 mm // 1" |
| Usage Rating | -WS (für Nässe geeignet, für den Außeneinsatz) |
| Weight | ca. 120g/m // 37 g/ft |
| Maximum maintain temperature | +200 °C // +392 °F |
| Maximum exposure temperature, de-energized | +250 °C // +482 °F |
| Maximum current | 40 A |
| Minimum start up temperature | -60 °C // -76 °F |
| Installation temperature, min. | -60 °C // -76 °F |
| Nominal voltage | 120 VAC / 208 VAC / 240 VAC / 277 VAC / 480 VAC / 600 VAC |
| Ambient temperature | -25 °C (-13 °F) bis +40 °C (+104 °F) (Class I, Div 1 & 2, USA) // -50 °C (-58 °F) bis +40 °C (+104 °F) (Class I, Div 1 & 2, Canada) // -60 °C (-76 °F) bis +70 °C (+158 °F) (alle anderen) |
| Bus wire cross section | 2x 1,5 mm² (AWG 16) |
